Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Coupler Scissor Jack

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

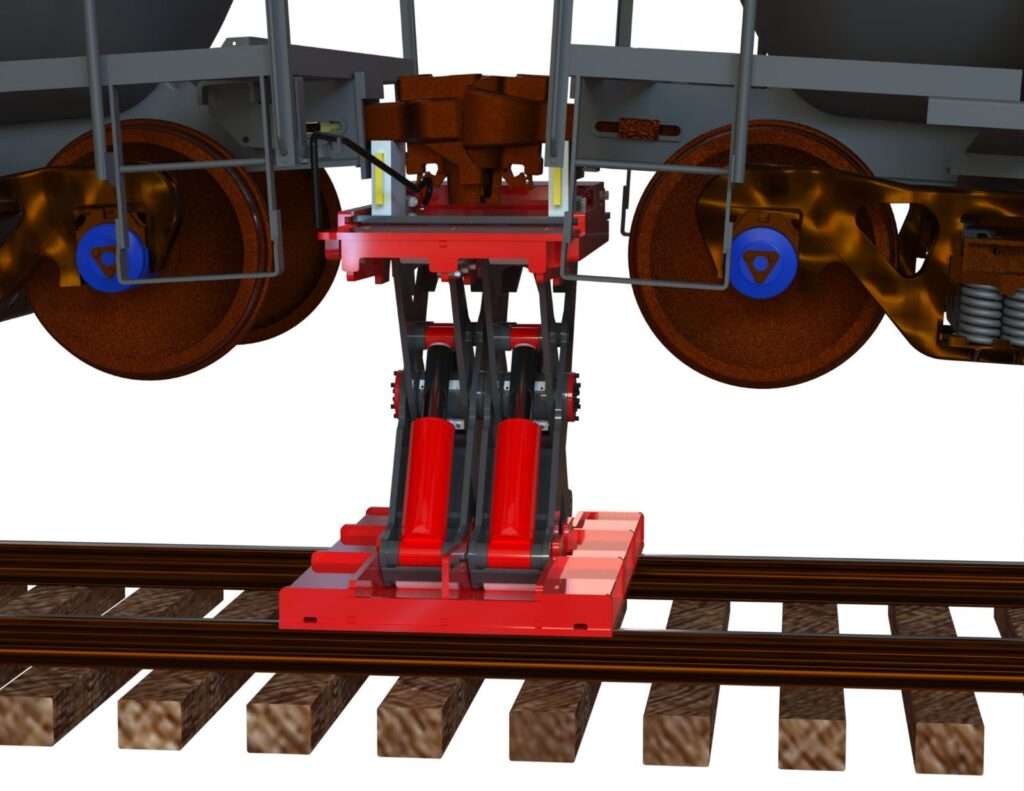

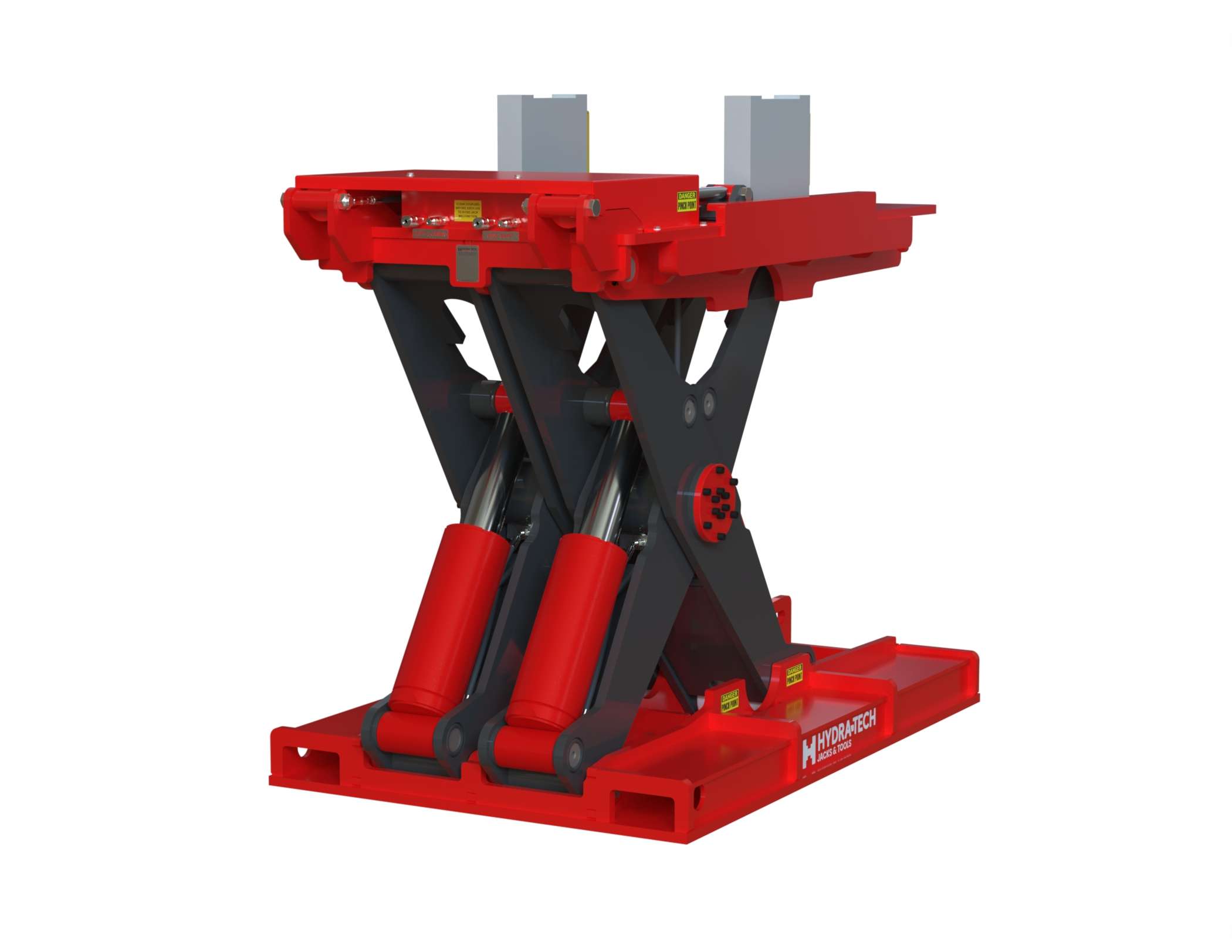

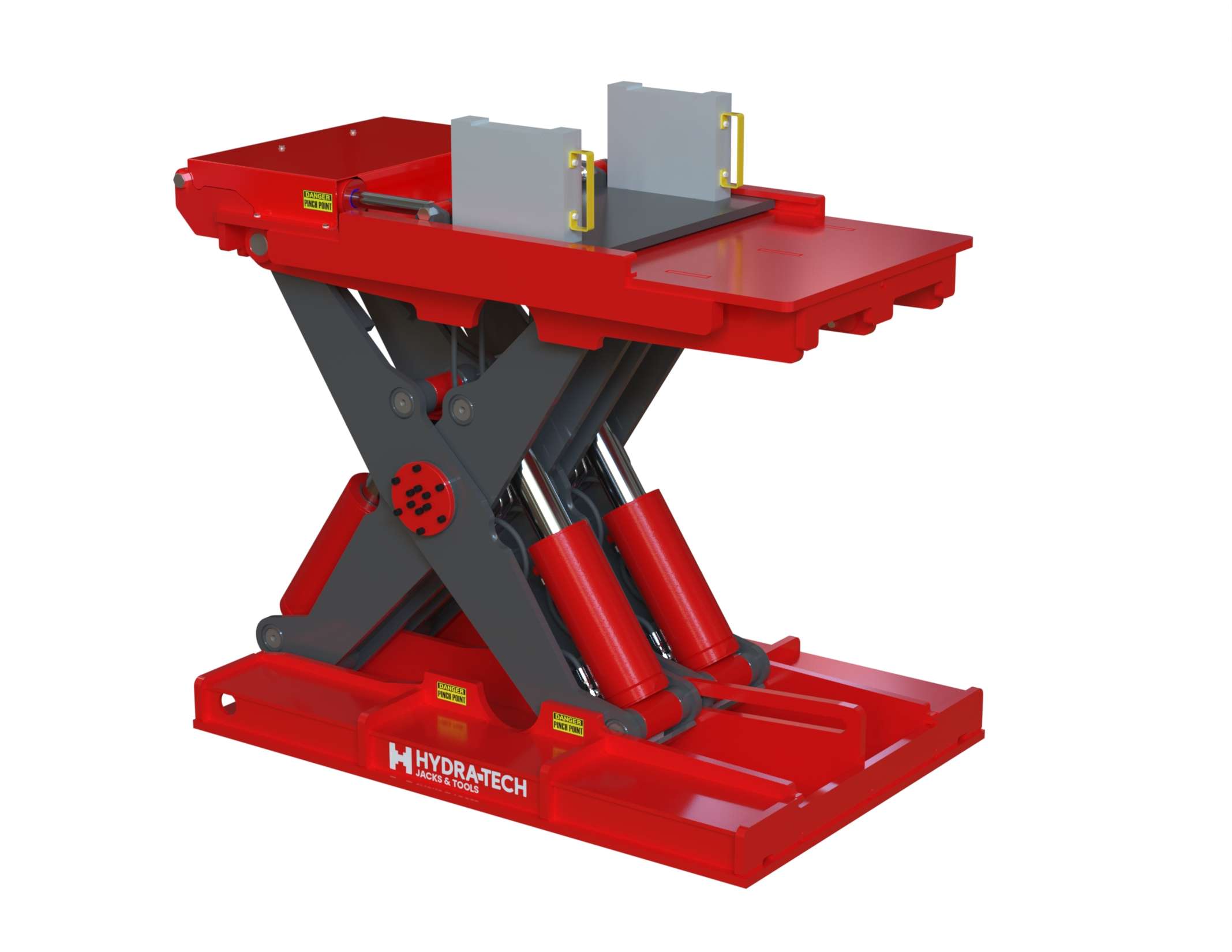

60 Ton In-Train Coupler Scissor Jack

IN-TRAIN COUPLER JACK 60T

The Hydra-Tech In-Train Coupler Scissor Jack 60T is a high-capacity scissor lifting system engineered for rapid wheelset replacement while railcars remain coupled.



Positioned on the rails and lifting beneath the coupler assembly, the system raises the connected ends of two adjacent railcars simultaneously. This unloads both trucks at the coupler interface, allowing up to four wheelsets to be serviced from a single lift position.



By eliminating the need to uncouple cars or move them to a repair track, the In-Train Coupler Jack significantly reduces downtime and increases yard throughput.

  • Lifts two adjacent car ends simultaneously — service up to four wheelsets from a single setup position
  • 60 ton capacity engineered for modern heavy axle loads
  • 5,000 PSI hydraulic operation — compatible with road truck hydraulic systems or optional Hydra-Tech power units
  • Rail-head supported base — stable lifting directly from track structure

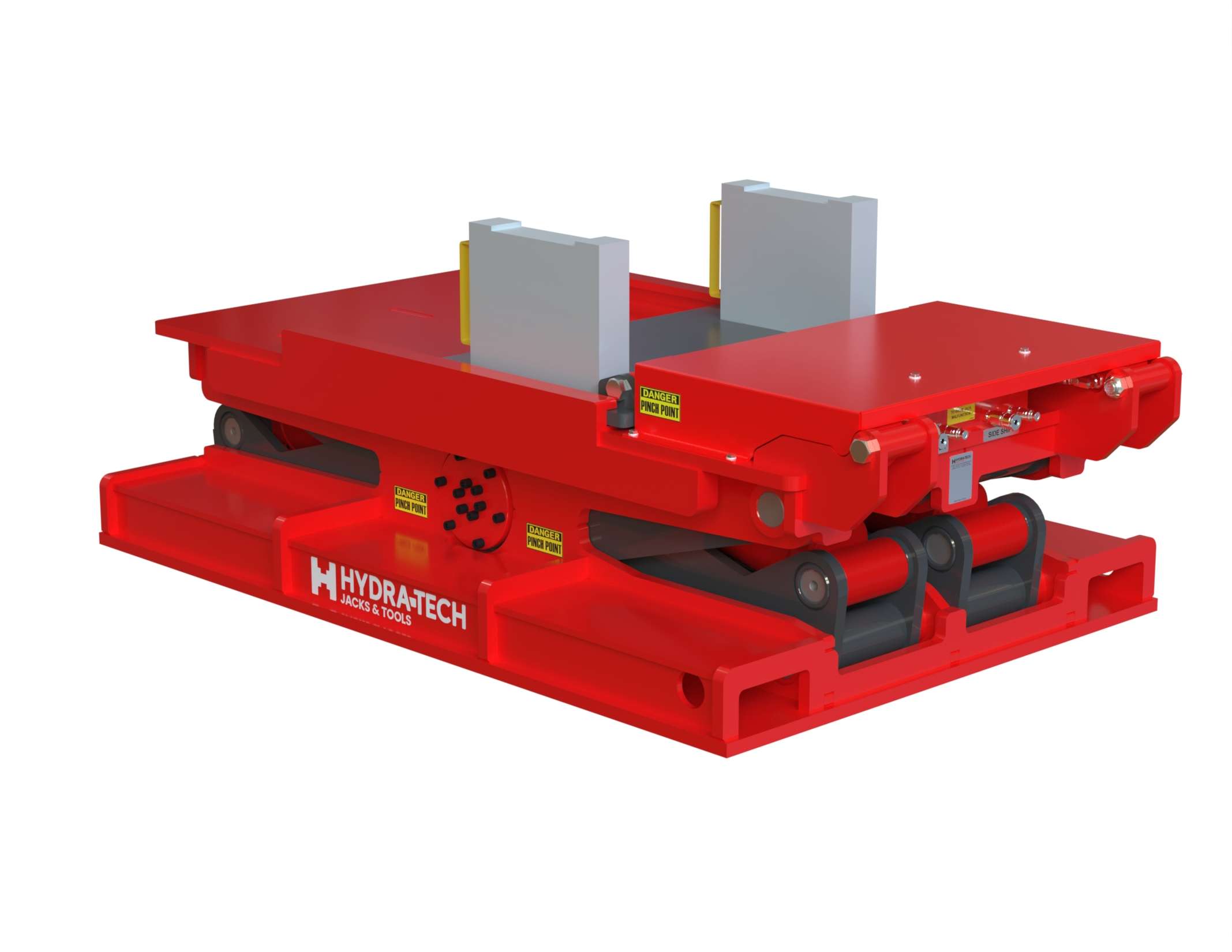

  • Low profile design positions beneath standard coupler assemblies without car separation

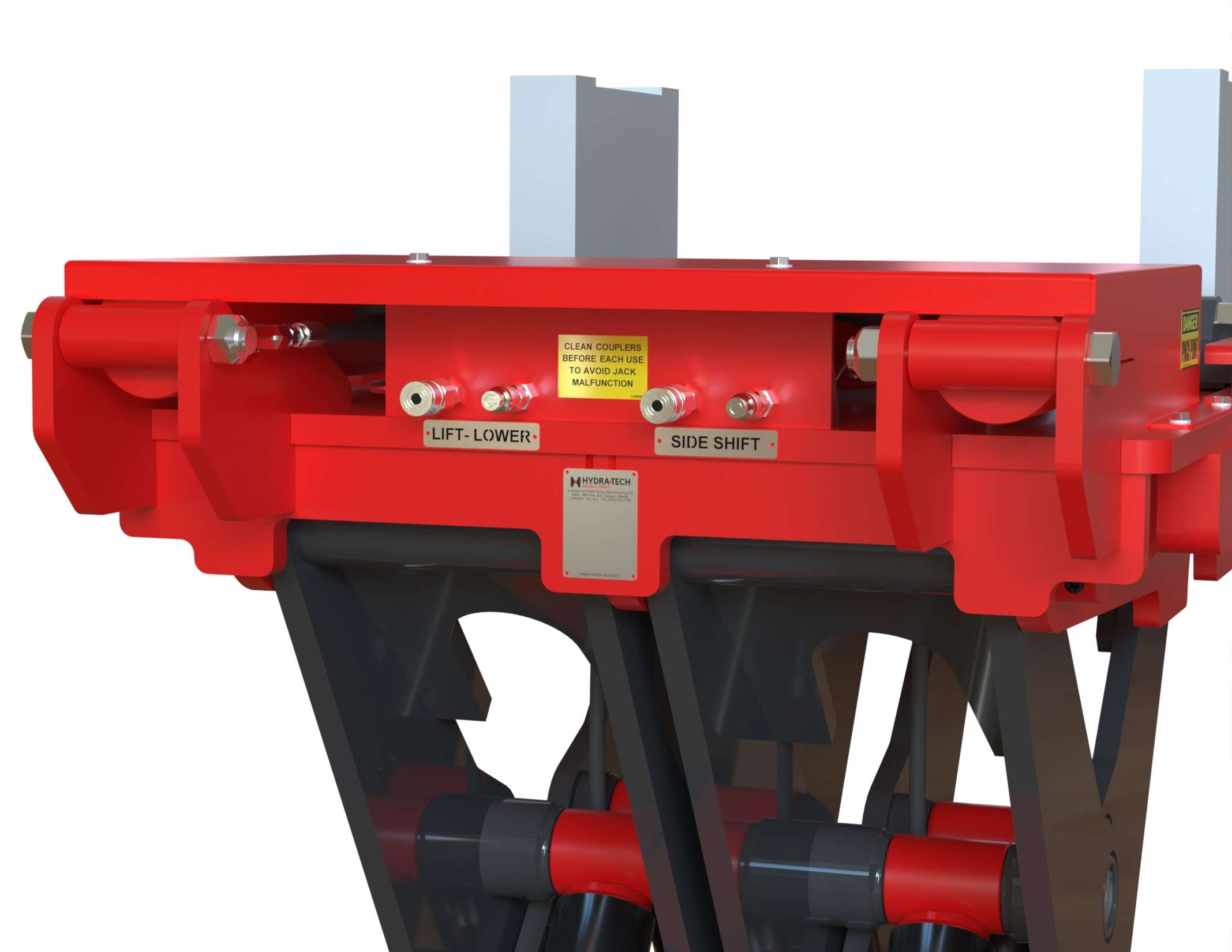

  • Integrated counterbalance valve on each cylinder — provides controlled lowering and load holding in the event of hydraulic line failure

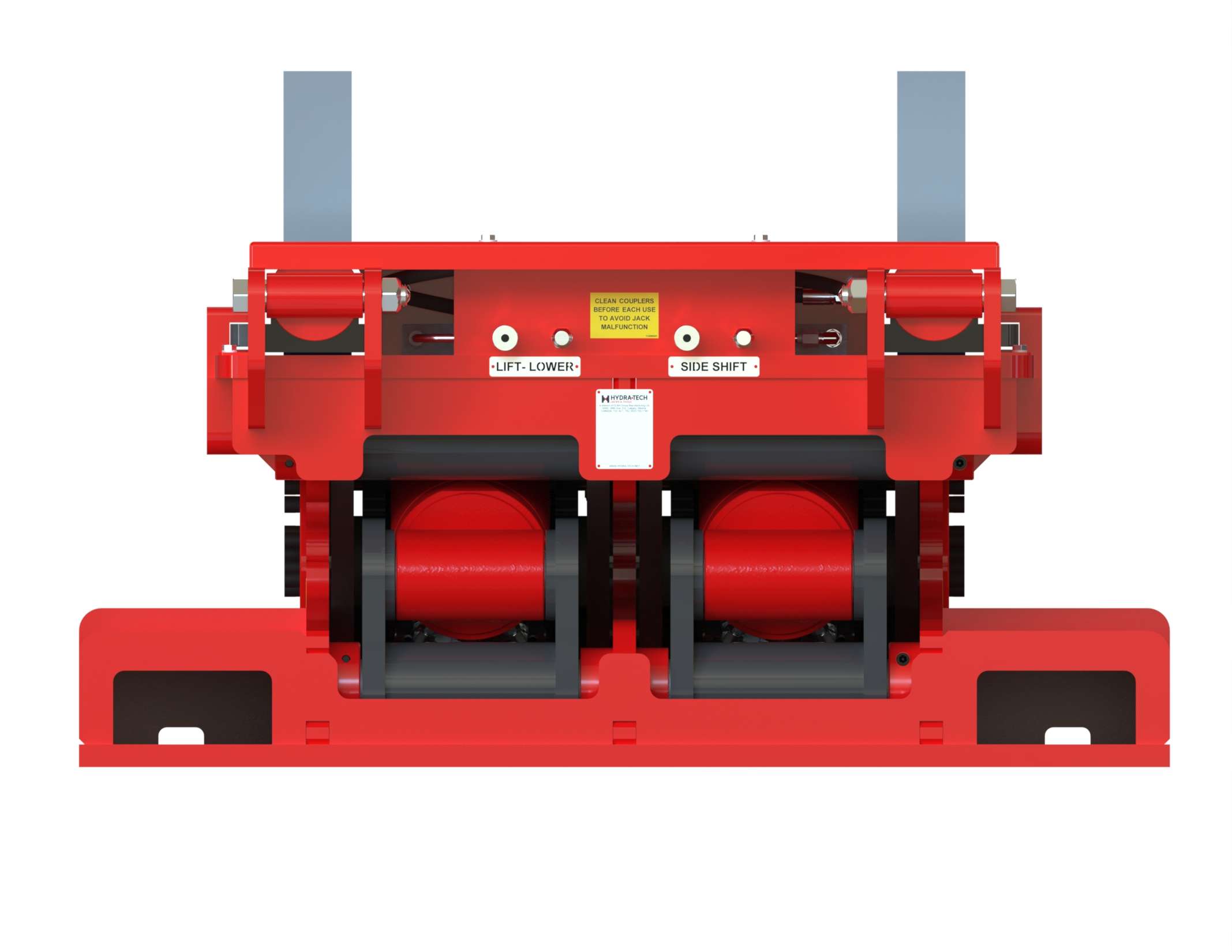

  • Forklift relocatable — rapid repositioning and redeployment between cars

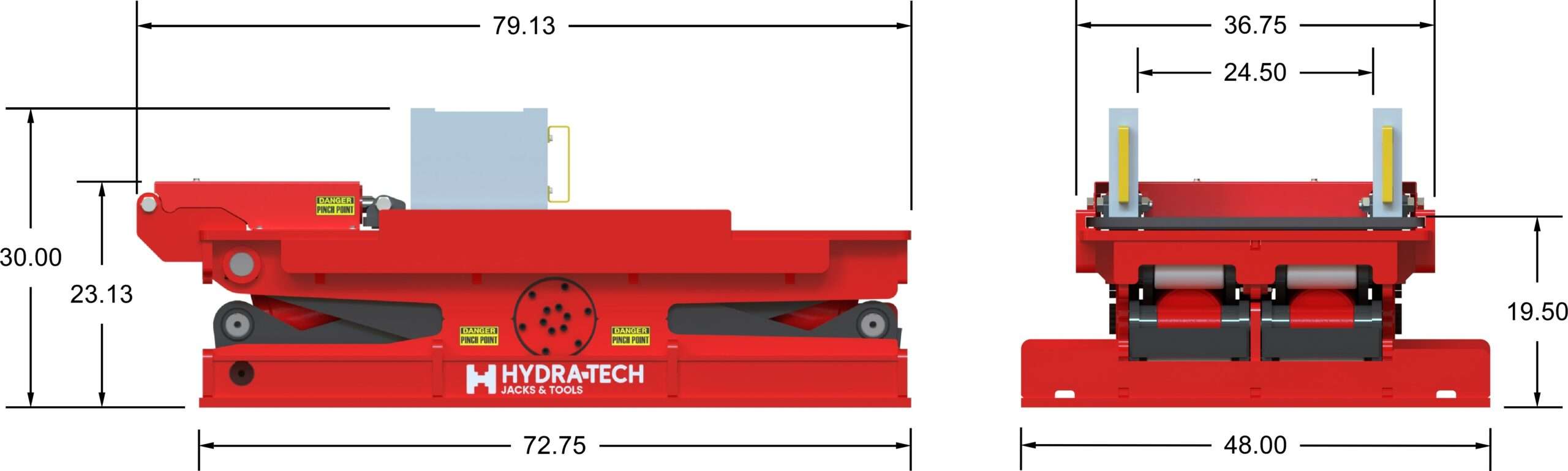

Capacity60 TonsTable Side Shift16"
Max Pressure5,000 PSIWidth at Base48"
Unit Weight6,800 Lbs.Length at Base72.75"
Min. Height19-9/16"Width at Table36-3/4"

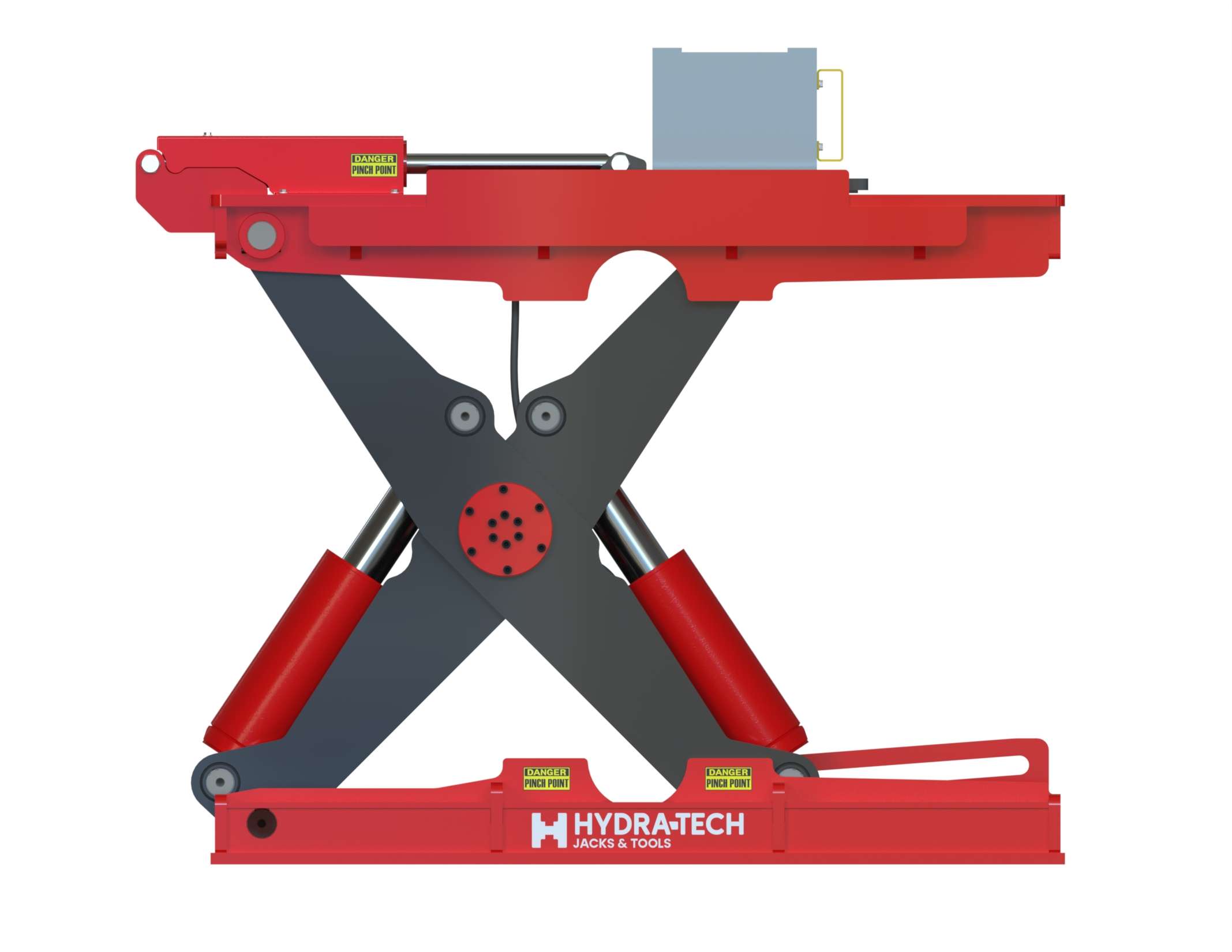

Max. Height58-7/16"Length at Table79-1/8"
IN-TRAIN COUPLER JACK 60T
IN-TRAIN COUPLER JACK 60T

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

KE-Push

Safely and Easily install stubborn E-Type draft Keys

KE-Push Tool: Draft Key Press - view2

KE-Push Scissor Lift Table*

The KE-Push Tool comes equipped with a 24” x 48” Scissor Lift Table, featuring a 2,000 lb. capacity, which is essential for its effective and safe operation.



This table is offered in a six wheeled version or a rail mounted table with forklift pockets – allowing for easy movement and precise positioning of the KE-Push.



RAIL MOUNTED OR WHEELED OPTIONS



Integrated: Designed to seamlessly complement the KE-Push Tool, ensuring safe and efficient railcar maintenance.



*six wheel table version not shown in prototype v2.0 images and video.

Fits Tank Cars and Hopper Cars.



The KE-Push Tool is specifically designed to tackle the most challenging draft key installations on standard E Type Couplers, where control and power are paramount.



When worn metal parts and tight tolerances, make traditional methods inefficient and dangerous, the KE-Push Tool delivers 10 tons of controlled force, ensuring that even the most stubborn keys are inserted safely and effectively.



As a complementary tool to our KE-Pull, the KE-Push addresses the installation phase, while the KE-Pull is focused on key removal. Together, they offer a comprehensive solution for all aspects of E Type Coupler draft key handling for maintenance and repairs.

  • Efficiency and Safety: The KE-Push Tool streamlines key insertion, reduces the risk of injury, and ensures the process is completed safely and efficiently.
  • 10- Tons of Force at 10,000 psi: Provides the necessary power to securely insert tough draft keys, while maintaining precision and control.

Part number: 113150128

Watch the KE-Push Tool in Action

Process demonstration. *v2 KE-Push Prototype – Tested 08-27-2024 Edmonton Alberta

Compatible with standard E type draft key/ coupler.

Complete Your Tool Setup with a Convenient hydraulic Pump Solution

Electric Hydraulic Pump

  • SPX Power Team Electric Hydraulic Pump
  • Lightweight, 10,000 psi, electric hydraulic pump with the ability to operate in any position.
  • Dual-stage electric hydraulic pump delivers 120 cu in/min at 400 psi and 10 cu in/min at 10,000 psi.
  • Battery-powered options, pressure regulators, and remote switches enhance pump versatility.

Hydraulic Air Pump

  • SPX Power Team Air Pump
  • This single-speed hydraulic air pump operates at 100 psi air pressure and delivers 6 cu in/min at 10,000 psi.

Hydraulic Hand Pump

  • SPX Power Team Hydraulic Hand Pump
  • Single and two-speed 10,000 psi hand operated pumps available in a variety of reservoir capacities and volumes per stroke.

Hydraulic Hoses

Hydra-Tech Hydraulic Hose 10,000 PSI
  • High pressure hydraulic hoses available in lengths from 3 to 50 feet. All hoses are rated for 10,000 psi working pressure.

Tall Railcar Support Stand

verestile and mobile railcar support stand

Hydra-Tech Tall Railcar Support Stand 40 Tons

Certified to ASME PALD 2005 available in two sizes. We are able to design stands for specific needs upon request.

  • 80,000 Lbs. capacity
  • 13" wheels for easy placement
  • Removable folding handle

Sizes

  • 48"
  • Custom

Part number: 118130061

Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Hydraulic Pumps

Explore Hydra-Tech’s full range of high-pressure hydraulic pumps for the Railroad, Mining, and Construction industries.

Hydra-Tech offers a complete range of high-pressure hydraulic pumps, ideal for both shop and on-site hydraulic jacking and tool powering. Our SPX Power Team hydraulic pumps are perfect for lighter-capacity tasks, offering reliable, compact solutions. For heavy-duty jacking, Hydra-Tech hydraulic pumps deliver the capacity needed to get the job done. Whether you need electric, manual, or portable hydraulic pumps, we provide the right solution for your needs.—explore our range or contact us for expert advice.

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Hydra-Tech Hydraulic Pumps

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Portable Electric Hydraulic Pump

Heavy Duty Portable Hydraulic Pump
This portable electric hydraulic pump provides a high-pressure solution for hydraulic jacking . With a compact design and the ability to run multiple tools, it’s ideal for both indoor and outdoor tasks that demand 10,000 psi. Its lightweight structure ensures easy transport, while the optional splitter manifold increases its functionality in a range of settings.
  • High pressure (10,000 psi) portable electric hydraulic pump
  • Portable and compact design
  • Run multiple tools (with splitter manifold option)
  • Certified hoses (with splitter manifold option)
  • Lightweight with ergonomic carry handles
  • Ideal for both indoor and outdoor use
User Guide

Hydraulic Pump Cart - PCA90

Hydraulic Pump Cart
The Hydraulic Pump Cart PCA90 is built for efficiency and convenience, providing ample hydraulic power to operate multiple tools in demanding environments. Its large-capacity reservoir and built-in storage make it a practical choice for maintaining hydraulic systems in the shop or on-site. This cart is designed for flexibility and ease of use, helping streamline operations when managing 10,000 psi equipment.
  • Large capacity reservoir is able to accommodate multiple hydraulic systems.
  • Cart provides a convenient way to carry your hydraulic tools while providing hydraulic power to operate them.
  • Very economical alternative to purchasing a unitized pump and lift module especially when you require more than one lifting unit.
  • Large built in storage racks to store jack accessories and hoses.
  • Designed for indoor and outdoor use. Large, low rolling resistance tires facilitate positioning on even or rough surfaces.
  • A versatile and convenient way to provide hydraulic power to multiple other 10,000 psi tools (either single or double acting tools).
  • Custom racking and cabinets are available for unique applications.
User Guide

SPX Power Team Hydraulic Pumps

Electric Hydraulic Pump

  • SPX Power Team Electric Hydraulic Pump
  • Lightweight, 10,000 psi, electric hydraulic pump with the ability to operate in any position.
  • Dual-stage electric hydraulic pump delivers 120 cu in/min at 400 psi and 10 cu in/min at 10,000 psi.
  • Battery-powered options, pressure regulators, and remote switches enhance pump versatility.

Hydraulic Air Pump

  • SPX Power Team Air Pump
  • This single-speed hydraulic air pump operates at 100 psi air pressure and delivers 6 cu in/min at 10,000 psi.

Hydraulic Hand Pump

  • SPX Power Team Hydraulic Hand Pump
  • Single and two-speed 10,000 psi hand operated pumps available in a variety of reservoir capacities and volumes per stroke.

Hydraulic Hoses

Hydra-Tech Hydraulic Hose 10,000 PSI
  • High pressure hydraulic hoses available in lengths from 3 to 50 feet. All hoses are rated for 10,000 psi working pressure.

Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Rail Scissor Lift Table

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

on track scissor lift table for efficient railcar maintenance

Hydra-Tech Heavy Duty Rail Scissor Lift Table

The Heavy Duty Rail Scissor Lift Table is a robust and versatile tool designed to handle a variety of railcar service procedures on the track. With a lifting capacity of 3,000 lbs, 36″ vertical travel, and an 11″ retracted clearance, this table is perfect for servicing components like couplers, draft gears, air reservoirs, and center cushions.



Built to withstand tough environments, it features a large support surface and includes safety features like an extendable pendant control for operation at a safe distance, ensuring maximum safety and efficiency during maintenance tasks.

  • 3,000 lbs lifting capacity for handling heavy railcar components
  • 36" vertical travel for versatile positioning
  • Large support surface of 24" x 48" for stability during operations
  • 11" retracted vertical clearance
  • Heavy-duty construction designed for tough environments
  • Optional audible safety warning system activated when the table is in operation (electric only)
  • Optional heavy-duty sliding table top, with 10" forward/backward and 2" side-to-side movement
  • Compatible with common work adapters and custom adapters (e.g., draft gear support adapter)
  • Available in electric and air-powered options for flexible use
  • Pendant control allows for operation from a safe distance during lift procedures
User Guide

Part number: 1131501XX

Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Shop scissor lift Table

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

position parts and tools safely and easily around the worksite

Hydra-Tech Heavy Duty Shop floor Scissor Lift table

The Heavy Duty Shop Scissor Lift Table is a versatile and essential tool designed to handle a wide range of lifting tasks across various industries, including rail, mining, and general maintenance. With a robust lifting capacity of 3,000 lbs, 36″ vertical travel, and 11″ retracted clearance, this table is ideal for servicing heavy components such as mining haul truck parts, mining equipment maintenance, railcar couplers, draft gears, air reservoirs, and center cushions.



Built for durability in tough environments, it features a large support surface and low resistance wheels for easy movement. Safety is further enhanced with an extendable pendant control, allowing operation from a safe distance.

  • 3,000 lbs lifting capacity for handling heavy components across various industries
  • 36" vertical travel for versatile positioning during maintenance tasks
  • Large support surface of 24" x 48" ensures stability during operations
  • 11" retracted vertical clearance for easy access under equipment
  • Heavy-duty construction built to withstand challenging environments
  • Optional audible safety warning system activates when the table is in operation (electric only)
  • Optional heavy-duty sliding table top for added functionality, with 10" forward/backward and 2" side-to-side movement
  • Electric and air-powered options available to suit different operational requirements
  • Pendant control allows for safe operation from a distance during lift procedures
User Guide

Part number: 1131501XX

Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Lift Stand

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

A Hydryaulic Jack and Certified Stand in One

A Hydraulic Jack and a Certified Support Stand in One System.



The Lift Stand hydraulic jack combines lifting and stability in one versatile tool. With all the capabilities of the original Mod-U-Lift modular jack, it also functions as a certified jack stand, making it the perfect all-in-one solution for heavy-duty jacking.



Whether lifting, securing, or maintaining equipment, the Lift Stand offers unmatched convenience and safety, saving you time and space.

  • Meets or exceeds ASME B30.1 2009 for Jacks
  • Meets or exceeds ASME PALD 2005 for Stands
  • Proprietary Locking Load Holding Rings
  • Offered in 60, 100, and 175-ton capacities. Hydra-Tech can customize a hydraulic cylinder capacity for you.
  • Available with electric, air, or gas motors
  • Ask about custom colors tailored to your operation’s safety culture, ensuring clear identification and alignment with your shop’s safety standards
  • Quick Connect and disconnect, no tools required to separate the pump from the lift module
  • 3- position handle on the 60 and 100- ton model, and 6 position handle on the 175- ton model
  • Compatible with first generation Mod-U-Lift Power Modules
  • 120- volt, low amperage electric motor (permanent magnet)
  • 24- volt 5′ – 20′ expandable curly cord (electric only)
  • Muffler system for reduced operating noise (air only)
  • External mounted 10-micron removable oil filter
  • Air filter and lubricator system (air only)
  • Oil level indicator and oil change drain plug
User Guide

Need a Custom Jack? Cylinder? Stand? Tool? Pump? Learn More.

CapacityPumpRetractedWidthStroke Weight
60 TonElectric or Air21"15.50"13″340 lbs.
60 TonElectric or Air25.63"15.50"16″395 lbs.
60 TonElectric or Air27.63"15.50"18"410 lbs.
60 TonElectric or Air33.63"15.50"24"495 lbs.
100 TonElectric or Air23.81"16.50"13"440 lbs.
100 TonElectric or Air26.81"16.50"16″475 lbs.
100 TonElectric or Air28.81"16.50"18″495 lbs.
100 TonElectric or Air34.81"16.50"24″590 lbs.
175 TonAir29"18"13″685 lbs.
175 TonAir31.38"18"15"715 lbs.
175 TonAir33.38"18"17"740 lbs.
175 TonAir40.38"18"24'885 lbs.
Part NumberModel NumberProduct Description
Mod-U-Lift - & Lock (Lift Stand) Lift Module (LM) - i.e. Lifting cylinder componenent of Mod-U-Lift system
135140005LS 6013SLift Stand, 60 Ton 13" StrokeLift Stand, 60 Ton 13" Stroke
135140004LS 6016SLift Stand, 60 Ton 16" StrokeLift Stand, 60 Ton 16" Stroke
135140003LS 10016SLift Stand, 100 Ton 16" StrokeLift Stand, 100 Ton 16" Stroke
135140002LS 10018SLift Stand, 100 Ton 18" StrokeLift Stand, 100 Ton 18" Stroke
135140001LS 17524SLift Stand, 175 Ton 24" StrokeLift Stand, 175 Ton 24" Stroke
Mod-U-Lift - Pump Module (PM) - i.e. Power and pump componenent of Mod-U-Lift system
112140126PM60-A90 W/ H60Power Module, 60 Ton Air With H60 Handle
112140134PM60-A90 W/ H100Power Module, 60 Ton Air With H100 Handle
112140125PM60-E55 W/ H60Power Module, 60 Ton Electric With H60 Handle
112140135PM60-E55 W/ H100Power Module, 60 Ton Electric With H100 Handle
112140030PM175-A90 W/ H175Power Module, 175 Ton With H175 Handle
132130002HTPE55LADPortable Pump, Electric
132130003HTPE55LAD W/ MNFDPortable Pump, Electric With Mainfold
112140146PM60E55 W/ MNFDPump, Electric With Mainfold
112130035Splitter Manifold Assy
112130007Heater Kit

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Complete Your Hydraulic jacking system with compatible accessories

Lift Stand Series Load Holding RIngs

  • Provides certified mechanical support. Designed for Lift Stand Jacks
Mod-U-Lift & Lock Jack - Locking Load Holding Rings 1

Lift Stand Series Jack Extensions

  • Locking aluminum extensions with a steel alloy base. Designed for Lift Stand Jacks
Mod-U-Lift & Lock Jack - Lock Extensions 1

Lift Stand Series Jack Saddle

Mod-U-Lift & Lock Jack - Locking Saddle

Mod-U-Lift Jack Pad

  • Two heights offered, designed for use on 830E and 930E mining haul trucks (custom heights available).
Mod-U-Lift Jacking Pad

Mod-U-Lift Cart

  • Easily move and operate the Lift Module on a collapsable wheel cart.
Hydra-Tech Mod-U-Lift & Lock - Lift Stand Mining Jack cart

Mod-U-Lift Bull Dog Mover

  • Easly maneuver 60, 100, and 175 ton capacity Mod-U-Lifts
Hydra-Tech Mod-U-Lift Modular Mining Jack - Manual accessory mover

Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

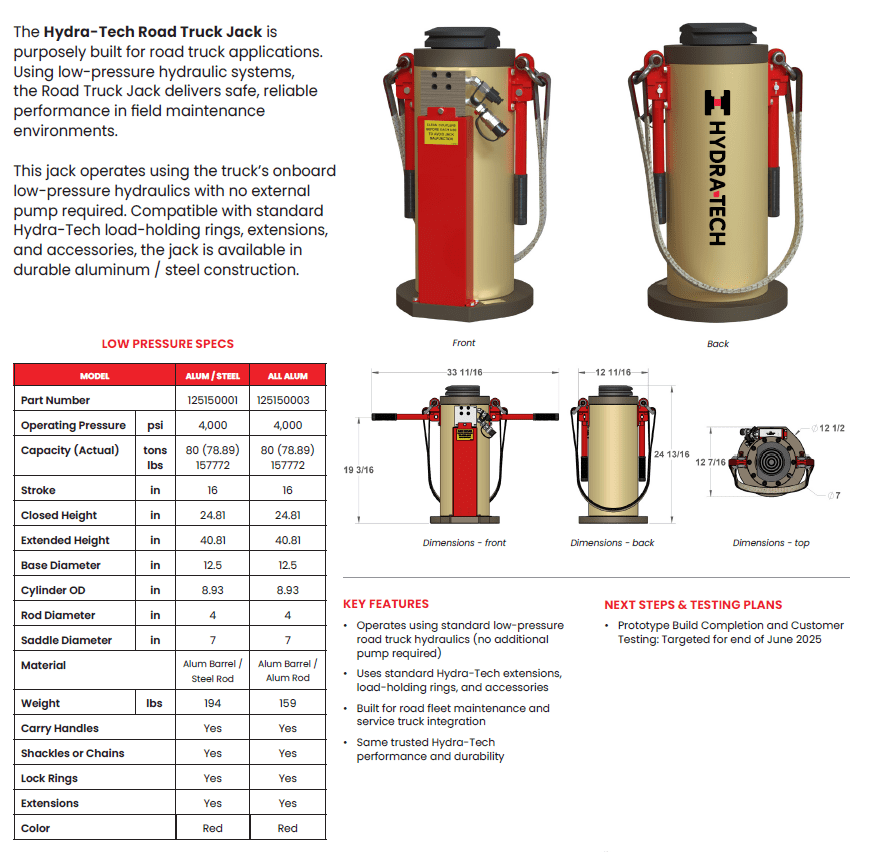

Road Truck Jack

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Portable Hydraulic Jacking System

Hydra-Tech Hi-Rail Road Truck Field Jack System - Lift Module - Aluminum Light Weight

The Road Truck Jack System is an ultra-lightweight portable jack designed to be equipped with hi-rail and any railcar road truck maintenance vehicle used for mobile railcar repairs and maintenance. Comes in high pressure (10,000 PSI) with portable pump orlow pressure (4,000 PSI) running off of truck hydraulic system.

NEW PRODUCT! – Available January 2026

LOW PRESSURE ROAD TRUCK JACK SYSTEM

Low Pressure Road Truck Jack - June 2025
Part NumberCapacityPumpRetractedWidthStroke WeightPressure
112140132100 TonElectric26 3/4"25"16"152 lbs.High Pressure (10K PSI)
125150003 (all alum.)80 TonTruck's System24 13/16"33 11/16"16"159 lbs.Low Pressure (4K PSI)
125150001 (steel rod)80 TonTruck's System24 13/16"33 11/16"16"194 lbs.Low Pressure (4K PSI)
User Guide

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Complete Your Hydraulic jacking system with compatible accessories

Load Holding RIngs

  • Provides temporary mechanical support.
Load Holding Rings Product

Jack Extensions

  • Lightweight, interlocking aluminum extensions with a steel alloy base.

Swivel Saddle

  • Compensates for sloped jacking points up to 5°, reducing side loading stress. Best used with extensions.
Hydra-Tech Swivel Saddle Tilted

Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Mod-U-Lift

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Modular Hydraulic Jacking System

The Mod-U-Lift delivers heavy-duty versatility with its detachable hydraulic lifting cylinder, offering exceptional work space clearance and flexibility. Ideal for a range of industries, it’s built to meet the demands of even the toughest jobs.



The Mod-U-Lift is a heavy duty hydraulic jack with lifting and power supply units that easily detach, offering flexibility across various applications.



Did you know the Mod-U-Lift Jacking System can also be used for railcar maintenance? Explore all hydraulic railcar jacks here.

  • Certified to ASME B30.1 2009
  • Offered in 40, 60, 100, and 175- ton jacking capacities. Hydra-Tech can customize a hydraulic cylinder capacity for you.
  • Available with electric, air, or gas motors
  • The Lift Module doubles as a horizontal ram, making it ideal for tensioning, spreading, or straightening
  • One Power Module can operate two jacks (with Manifold System option)
  • 3-position handle on the 60 and 100- ton model, and 6-position handle on the 175- ton model
  • 120- volt, low amperage electric motor (permanent magnet)
  • 24- volt 5′ – 20′ expandable curly cord (electric only)
  • Muffler system for reduced operating noise (air only)
  • External-mounted 10-micron removable oil filter
  • Air filter and lubricator system (air only)
  • Oil level indicator and oil change drain plug
User Guide

Need a Custom Jack? Cylinder? Stand? Tool? Pump? Learn More.

CapacityPumpRetractedWidthStroke Weight
60 TonElectric or Air21″25″13″405 lbs / 420 lbs.
60 TonElectric or Air25″25″16″415 lbs / 430 lbs.
60 TonElectric or Air33″25″24″435 lbs / 450 lbs.
100 TonElectric or Air26 3/4″25″16″525 lbs / 540 lbs.
100 TonElectric or Air30 1/2″25″18″570 lbs / 585 lbs.
100 TonElectric or Air36 1/2″25″24″600 lbs / 615 lbs.
175 TonAir30″27″13″910 lbs.
175 TonAir32″27″15″1000 lbs.
175 TonAir34″27″17″1050 lbs.
175 TonAir41 1/2″27″24″1225 lbs.
Part NumberModel NumberProduct Description
Mod-U-Lift - Lift Module (LM) - i.e. Lifting cylinder componenent of Mod-U-Lift system
112140112LM6013S - LPLift Module, 60 Ton 13" Stroke - Low Profile
112140101LM6016SLift Module, 60 Ton 16" Stroke
112140115LM6024SLift Module, 60 Ton 24" Stroke
112140132LMA10016ALift Module, 100 Ton 16" Stroke - All Aluminum
112140027LM10016SLift Module, 100 Ton 16" Stroke
112140024LM10018SLift Module, 100 Ton 18" Stroke
112140119LM10024SLift Module, 100 Ton 24" Stroke
112140128LM17513SLift Module, 175 Ton 13" Stroke
112140124LM17515SLift Module, 175 Ton 15" Stroke
112140123LM17517SLift Module, 175 Ton 17" Stroke
112140021LM17524SLift Module, 175 Ton 24" Stroke
Mod-U-Lift - Pump Module (PM) - i.e. Power and pump componenent of Mod-U-Lift system
112140126PM60-A90 W/ H60Power Module, 60 Ton Air With H60 Handle
112140134PM60-A90 W/ H100Power Module, 60 Ton Air With H100 Handle
112140125PM60-E55 W/ H60Power Module, 60 Ton Electric With H60 Handle
112140135PM60-E55 W/ H100Power Module, 60 Ton Electric With H100 Handle
112140030PM175-A90 W/ H175Power Module, 175 Ton With H175 Handle
132130002HTPE55LADPortable Pump, Electric
132130003HTPE55LAD W/ MNFDPortable Pump, Electric With Mainfold
112140146PM60E55 W/ MNFDPump, Electric With Mainfold
112130035Splitter Manifold Assy
112130007Heater Kit

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Complete Your Hydraulic jacking system with compatible accessories

Load Holding RIngs

  • Provides temporary mechanical support.
Load Holding Rings Product

Jack Extensions

  • Lightweight, interlocking aluminum extensions with a steel alloy base.

Swivel Saddle

  • Compensates for sloped jacking points up to 5°, reducing side loading stress. Best used with extensions.
Hydra-Tech Swivel Saddle Tilted

Mod-U-Lift Jack Pad

  • Two heights offered, designed for use on 830E and 930E mining haul trucks (custom heights available).
Mod-U-Lift Jacking Pad

Mod-U-Lift Jack Cart

  • Easily move and operate the Lift Module on a collapsable wheel cart.​
Hydra-Tech Mod-U-Lift & Lock - Lift Stand Mining Jack cart

Mod-U-Lift Bull Dog Cart

  • Easly maneuver 60, 100, and 175 ton capacity Mod-U-Lifts
Hydra-Tech Mod-U-Lift Modular Mining Jack - Manual accessory mover

Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Black Jack

One Piece Hydraulic Jacking System

Hydra-Tech Railroad Black Jack - 60-ton to 100-ton Railcar Jack - Air

The Black Jack has been a reliable rail jack choice in the railroad industry for over 20 years, trusted for its safety, durability, and value. It’s a product that embodies what Hydra-Tech stands for.



Did you know the Black Jack Hydraulic Jacking System is also used for mining trucks and earthmoving equipment? The Low Profile Black Jack (PN: 124150012) was designed to fit close to mining haul truck wheel lift points for safe and efficient jacking. Explore all hydraulic mining jacks here.

  • Certified to ASME B30.1 2009
  • Available in 60 and 100- ton capacities. Hydra-Tech can also design and manufacture custom hydraulic cylinders.
  • Available with electric and air motors
  • 13″, 16″, 18″, and 24″ stroke lengths available
  • 4- position handle for easy movement and enhanced safety
  • Close-fit, low-profile base available for better clearance
  • Two lift points for convenience
  • 120- volt, low amperage electric motor (permanent magnet)
  • 24- volt control circuit (electric only)
  • 5′- 20′ expandable curly cord (electric only)
  • Muffler system for reduced operating noise (air only)
  • External mounted 10-micron removable oil filter
  • Air filter and lubricator system (air only)
  • Dipstick oil level indicator
User Guide

Need a Custom Jack? Cylinder? Stand? Tool? Pump? Learn More.

Part NumberCapacityPumpRetractedWidthStroke Weight
12415001060 TonElectric21″25″13″350 lbs.
In Stock!
12415000160 TonElectric25″25″16″395 lbs.
12415001260 TonElectric33″25″24″460 lbs.
12415001160 TonAir21″25″13″365 lbs.
12415000260 TonAir25″25″16″410 lbs.
12415001360 TonAir33″25″24″475 lbs.
124150005100 TonElectric27″25″16″435 lbs.
124150003100 TonElectric29″25″18″550 lbs.
124150006100 TonAir27″25″16″450 lbs.
124150004100 TonAir29″25″18″495 lbs.
124150018100 TonAir33″25″24″560 lbs.

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Complete Your Hydraulic jacking system with compatible accessories

Load Holding RIngs

  • Provides temporary mechanical support.
Load Holding Rings Product

Jack Extensions

  • Lightweight, interlocking aluminum extensions with a steel alloy base.

Swivel Saddle

  • Compensates for sloped jacking points up to 5°, reducing side loading stress. Best used with extensions.
Hydra-Tech Swivel Saddle Tilted
