Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Hi-Rail Truck Jack

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).
Hi-Rail Road Truck Railroad Mantainance Jack
Miller, Scott A. CN railroad maintenance truck 171808 20120930 01. 30 September 2012. Wikimedia Commons, Creative Commons Attribution 3.0 Unported.

Hi-Rail Truck Jack - In Field Railcar Jack 100 Ton

Hydra-Tech Hi-Rail Road Truck Field Jack System - Lift Module - Aluminum Light Weight

The Hi-Rail Truck Jack System is an ultra-lightweight portable jack designed to be equipped with hi-rail and any railcar road truck maintenance vehicle used for mobile railcar repairs and maintenance.



Complete system comprised of:

–  2 aluminum lift modules

–  1 portable electric hydraulic pump module

–  2 load holding ring sets

–  2 steel base extensions

–  2 load saddles

–  2 sets of hydraulic hoses

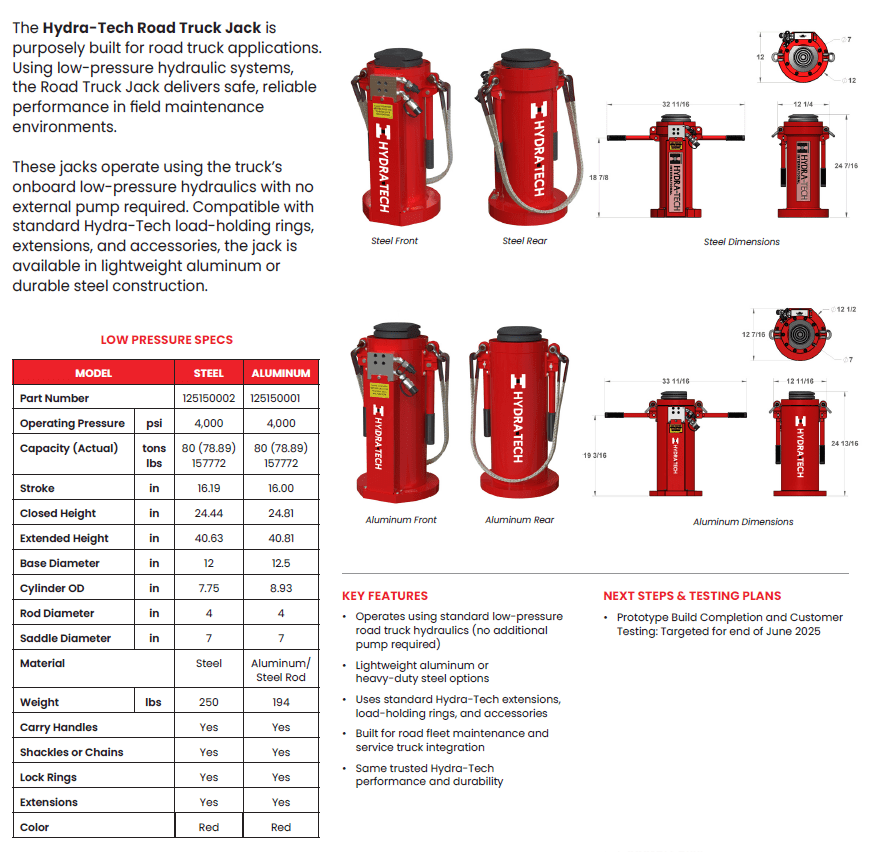

LOW PRESSURE OPTION COMING SOON! Contact us today.

  • Certified to ASME B30.1 2009
  • Lifting capacity of up to 100 tons
  • 25″ retracted height with 16″ Stroke
  • Complete package designed to be equipped with hi-rail and standard trucks used for mobile field repairs and maintenance
  • Ultra-lightweight aluminum base
  • Splitter manifold configuration allows two jacks to run off a single pump
  • Electric powered portable pumps offered
  • 5′- 20′ expandable curly cord on hydraulic pump (electric only)
BROCHURE
Manual
Railroad Catalog

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).
Hi-Rail Road Truck Jack - 100 Ton
Part NumberPumpRetracted HeightWidthStrokeApprox. Weight
112140132Electric26 3/4"25"16"152 lbs.

Complete Your jack system with compatible accessories

Load Holding RIngs

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.
  • Only compatible with Black Jack and MOD-U-LIFT.
    Not compatible with MOD-U-LIFT & LOCK lift stand jack.

Jack Extensions

  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Interlocking segments for increased safety.
  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Lifting handles for 20″ (4+16″) extensions.
  • Only compatible with Black Jack and MOD-U-LIFT.
    Not compatible with MOD-U-LIFT & LOCK lift stand jack.

Swivel Saddle

Hydra-Tech Swivel Saddle Tilted
  • The Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.
