KE-PULL Draft Key Puller

KE-Pull KP20AL - Safely and Easily Remove stubborn Railcar Draft Keys

Hydra-Tech Draft Gear Service KE-Pull Cross Key Draft Key Puller Tool and Adapters

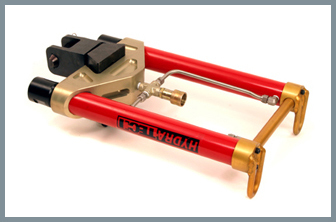

The KE-Pull Draft Key Puller is a lightweight and highly versatile tool designed for efficient removal of railcar draft key’s (cross key).



It features a patented design that accommodates a variety of optional adapters, including:

 – 360° articulated pin puller

 – Low profile pulling fork

 – 360° quick puller

 – 360° reverse puller



This flexibility ensures safe and effective use in various railcar service applications, making it an essential tool for removing and installing draft keys and pins with precision.

  • 20-ton capacity for efficient removal and installation of draft keys and pins in railcar maintenance
  • Patented design supports multiple adapter configurations for versatile applications
  • 360° swivel capability to easily find the optimal reaction point
  • Operates seamlessly with a 10,000 psi hydraulic system for powerful performance
  • Three safety harness attachment points ensure secure and safe operation
  • Lightweight frame design for easy handling and maneuverability
  • Compatible with a range of adapters, including 360° quick pull and reverse pull options. At least one adapter is required.

Part number: 113150005

Brochure
Manual
Service Tools Cart

Process demonstration. *first generation draft key KE-Pull and adapter shown in video.

KE-Pull Adapters

Patented dovetail design allows multiple adapters to be used with a single pull frame. All adapters are placed on the work area and attached to the KE Pull with a dovetail fitting. This reduces the need for heavy lifting. Rotating adapters allow for locating the best reaction points.

360° Quick Pull

Used when there is room between the key head and the train line.

360° Articulated Pin Puller

Used to pull connector pins on articulated cars.

Low Profile Pulling Forks

Used where there is no room between the train line and the key. Low head designed for removing E-Keys.

360° Reverse Pull

Key is removed by cutting off the key head and pulling from the back side. Allows the draft key to be pulled from the retaining pin hole by cutting the head off. If the Key is no longer usable, the easiest success for removal is by pulling from the back side after the head has been cut off.

Complete Your Tool Setup with a Convenient Pump Solution

Electric Pump

  • Lightweight, electric 10,000 psi pump with the ability to operate in any position.
  • Dual-stage pump delivers 120 cu in/min at 400 psi and 10 cu in/min at 10,000 psi.
  • Battery-powered options, pressure regulators, and remote switches enhance pump versatility.

Air Pump

  • This single-speed air pump operates at 100 psi air pressure and delivers 6 cu in/min at 10,000 psi.

Hand Pump

  • Single and two-speed 10,000 psi hand pumps available in a variety of reservoir capacities and volumes per stroke.

hyDraulic Hoses

Hydra-Tech Hydraulic Hose 10,000 PSI
  • Hoses available in lengths from 3 to 50 feet. All hoses are rated for 10,000 psi working pressure.
