Sizes – Modular Jacking System

40 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140006 Electric 22″ 27 1/2″ 14″ 305 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

60 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140112 Electric or Air 21″ 25″ 13″ 405 lbs / 420 lbs.
112140101 Electric or Air 25″ 25″ 16″ 415 lbs / 430 lbs.
112140115 Electric or Air 33″ 25″ 24″ 435 lbs / 450 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

100 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140027 Electric or Air 26 3/4″ 25″ 16″ 525 lbs / 540 lbs.
112140024 Electric or Air 30 1/2″ 25″ 18″ 570 lbs / 585 lbs.
112140119 Electric or Air 36 1/2″ 25″ 24″ 600 lbs / 615 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

175 Ton Modulift Jack

Part Number Pump Retracted Height Width Stroke Approx. Weight
112140128 Air 30″ 27″ 13″ 910 lbs.
112140124 Air 32″ 27″ 15″ 1000 lbs.
112140123 Air 34″ 27″ 17″ 1050 lbs.
112140021 Air 41 1/2″ 27″ 24″ 1225 lbs.
CONTACT HYDRA-TECH FOR CUSTOM SIZES

Mod-U-Lift

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

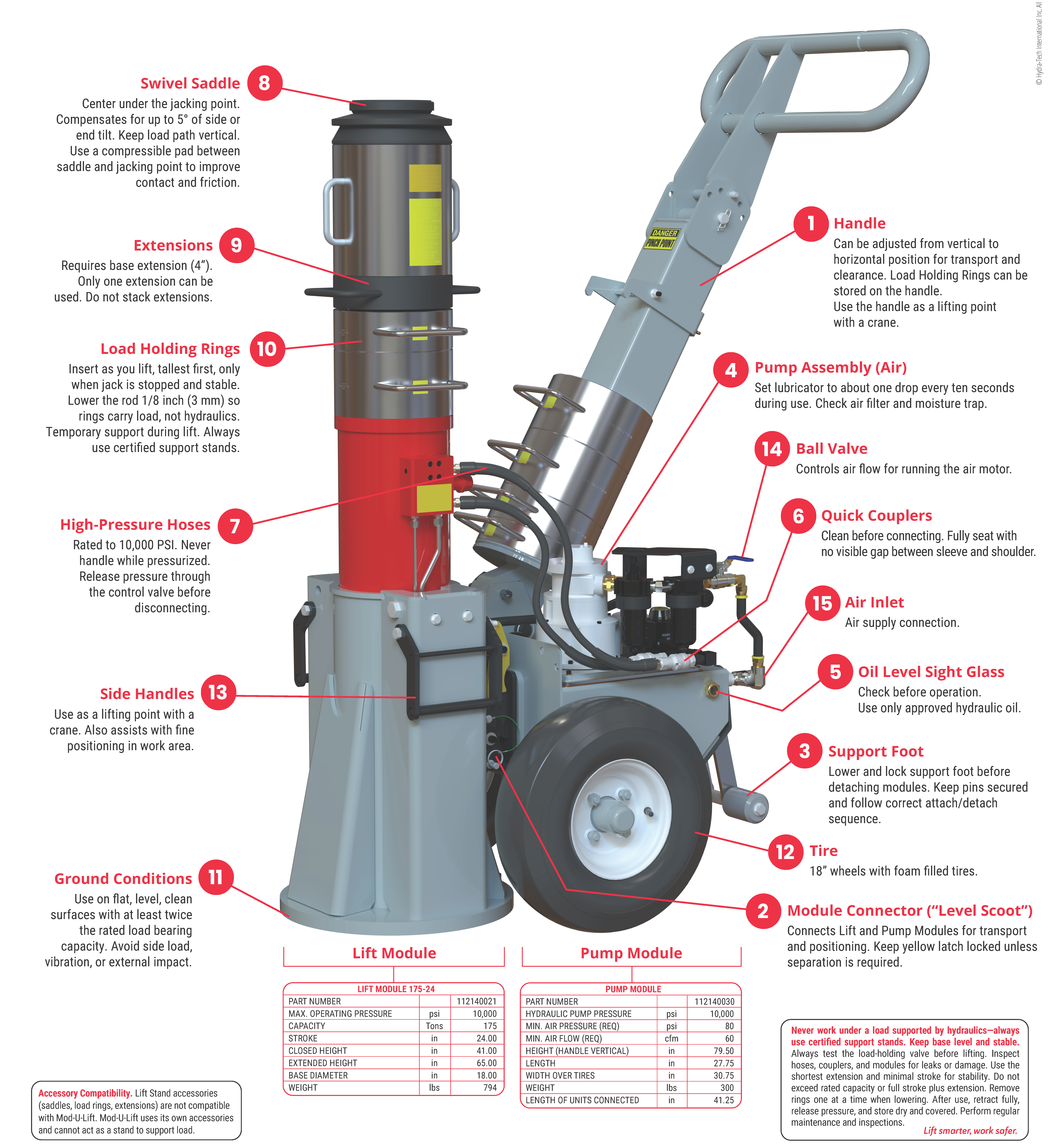

Modular Hydraulic Jacking System

Hydra-Tech Mod-U-Lift Modular Mining Jack - Pump Module and Lift Module System.

The Mod-U-Lift delivers heavy-duty versatility with its detachable hydraulic lifting cylinder, offering exceptional work space clearance and flexibility. Ideal for a range of industries, it’s built to meet the demands of even the toughest jobs.



The Mod-U-Lift is a heavy duty hydraulic jack with lifting and power supply units that easily detach, offering flexibility across various applications.



Did you know the Mod-U-Lift Jacking System can also be used for railcar maintenance? Explore all hydraulic railcar jacks here.

  • Certified to ASME B30.1 2009
  • Offered in 40, 60, 100, and 175- ton jacking capacities. Hydra-Tech can customize a hydraulic cylinder capacity for you.
  • Available with electric, air, or gas motors
  • The Lift Module doubles as a horizontal ram, making it ideal for tensioning, spreading, or straightening
  • One Power Module can operate two jacks (with Manifold System option)
  • 3-position handle on the 60 and 100- ton model, and 6-position handle on the 175- ton model
  • 120- volt, low amperage electric motor (permanent magnet)
  • 24- volt 5′ – 20′ expandable curly cord (electric only)
  • Muffler system for reduced operating noise (air only)
  • External-mounted 10-micron removable oil filter
  • Air filter and lubricator system (air only)
  • Oil level indicator and oil change drain plug
User Guide

Need a Custom Jack? Cylinder? Stand? Tool? Pump? Learn More.

CapacityPumpRetractedWidthStroke Weight
60 TonElectric or Air21″25″13″405 lbs / 420 lbs.
60 TonElectric or Air25″25″16″415 lbs / 430 lbs.
60 TonElectric or Air33″25″24″435 lbs / 450 lbs.
100 TonElectric or Air26 3/4″25″16″525 lbs / 540 lbs.
100 TonElectric or Air30 1/2″25″18″570 lbs / 585 lbs.
100 TonElectric or Air36 1/2″25″24″600 lbs / 615 lbs.
175 TonAir30″27″13″910 lbs.
175 TonAir32″27″15″1000 lbs.
175 TonAir34″27″17″1050 lbs.
175 TonAir41 1/2″27″24″1225 lbs.
Part NumberModel NumberProduct Description
Mod-U-Lift - Lift Module (LM) - i.e. Lifting cylinder componenent of Mod-U-Lift system
112140112LM6013S - LPLift Module, 60 Ton 13" Stroke - Low Profile
112140101LM6016SLift Module, 60 Ton 16" Stroke
112140115LM6024SLift Module, 60 Ton 24" Stroke
112140132LMA10016ALift Module, 100 Ton 16" Stroke - All Aluminum
112140027LM10016SLift Module, 100 Ton 16" Stroke
112140024LM10018SLift Module, 100 Ton 18" Stroke
112140119LM10024SLift Module, 100 Ton 24" Stroke
112140128LM17513SLift Module, 175 Ton 13" Stroke
112140124LM17515SLift Module, 175 Ton 15" Stroke
112140123LM17517SLift Module, 175 Ton 17" Stroke
112140021LM17524SLift Module, 175 Ton 24" Stroke
Mod-U-Lift - Pump Module (PM) - i.e. Power and pump componenent of Mod-U-Lift system
112140126PM60-A90 W/ H60Power Module, 60 Ton Air With H60 Handle
112140134PM60-A90 W/ H100Power Module, 60 Ton Air With H100 Handle
112140125PM60-E55 W/ H60Power Module, 60 Ton Electric With H60 Handle
112140135PM60-E55 W/ H100Power Module, 60 Ton Electric With H100 Handle
112140030PM175-A90 W/ H175Power Module, 175 Ton With H175 Handle
132130002HTPE55LADPortable Pump, Electric
132130003HTPE55LAD W/ MNFDPortable Pump, Electric With Mainfold
112140146PM60E55 W/ MNFDPump, Electric With Mainfold
112130035Splitter Manifold Assy
112130007Heater Kit

Jack Accessories

Lift Module Cart

  • Lift Module Transporter
  • Even more SAFETY, VERSATILITY, and VALUE from your MOD-U-LIFT Jacking Systems.

Safety

  • The proper capacity and height Lift Modules can be easily positioned under ‘difficult to access’ jacking points

Versatility

  • Maneuver 60, 100, and 175 ton capacity Lift Modules
  • Interchangeable mounting plate with multiple configurations

Value

  • With the MOD-U-LIFT System you require fewer jacks to cover all your lifting needs

Sizes

  • Works with all sizes of Lift Modules

JACK ACCESSORIES

Load Holding Rings, Extensions and Steel Base Extension

Extension and Base

Extensions & Base

  • 4″ base + extensions of 4″, 8″, and 16″ (Net extension height 4+4″, 4+8″, and 4+16″).
  • Light weight aluminum extension construction.
  • Steel alloy base extension.
  • Lifting handles for 20″ (4+16″) extensions.
  • Interlocking segments for increased safety.

Load Holding Rings

  • Load Holding Rings Provide Temporary Mechanical Support.
  • Welded Handles for safe and convenient placement.
  • Various Load Holding Ring heights for versatility.

Extensions and Load Holding Ring

Extensions and Load Holding Ring

Black Jack 60 Ton

Black Jack 60 Ton with 4″ Extension

Black Jack 60 Ton with 8″ Extension

Black Jack 60 Ton with 16″ Extension

Swivel Saddle

Swivel Saddle

  • Swivel Saddle will compensate for a sloped jacking point, up to 5°, to reduce side loading stress. Recommended with extensions.

Jacking Pad

Swivel Saddle

  • Designed to safely increase the reach of 175 ton lift modules
  • Bolts in securely
  • Allows for convenient transportation via forklift or pallet jack
  • Two heights offered, designed for use on 830E and 930E haul trucks (custom heights available).

Complete Your Hydraulic jacking system with compatible accessories

Load Holding RIngs

  • Provides temporary mechanical support.
Load Holding Rings Product

Jack Extensions

  • Lightweight, interlocking aluminum extensions with a steel alloy base.

Swivel Saddle

  • Compensates for sloped jacking points up to 5°, reducing side loading stress. Best used with extensions.
Hydra-Tech Swivel Saddle Tilted

Mod-U-Lift Jack Pad

  • Two heights offered, designed for use on 830E and 930E mining haul trucks (custom heights available).
Mod-U-Lift Jacking Pad

Mod-U-Lift Jack Cart

  • Easily move and operate the Lift Module on a collapsable wheel cart.​
Hydra-Tech Mod-U-Lift & Lock - Lift Stand Mining Jack cart

Mod-U-Lift Bull Dog Cart

  • Easly maneuver 60, 100, and 175 ton capacity Mod-U-Lifts
Hydra-Tech Mod-U-Lift Modular Mining Jack - Manual accessory mover
